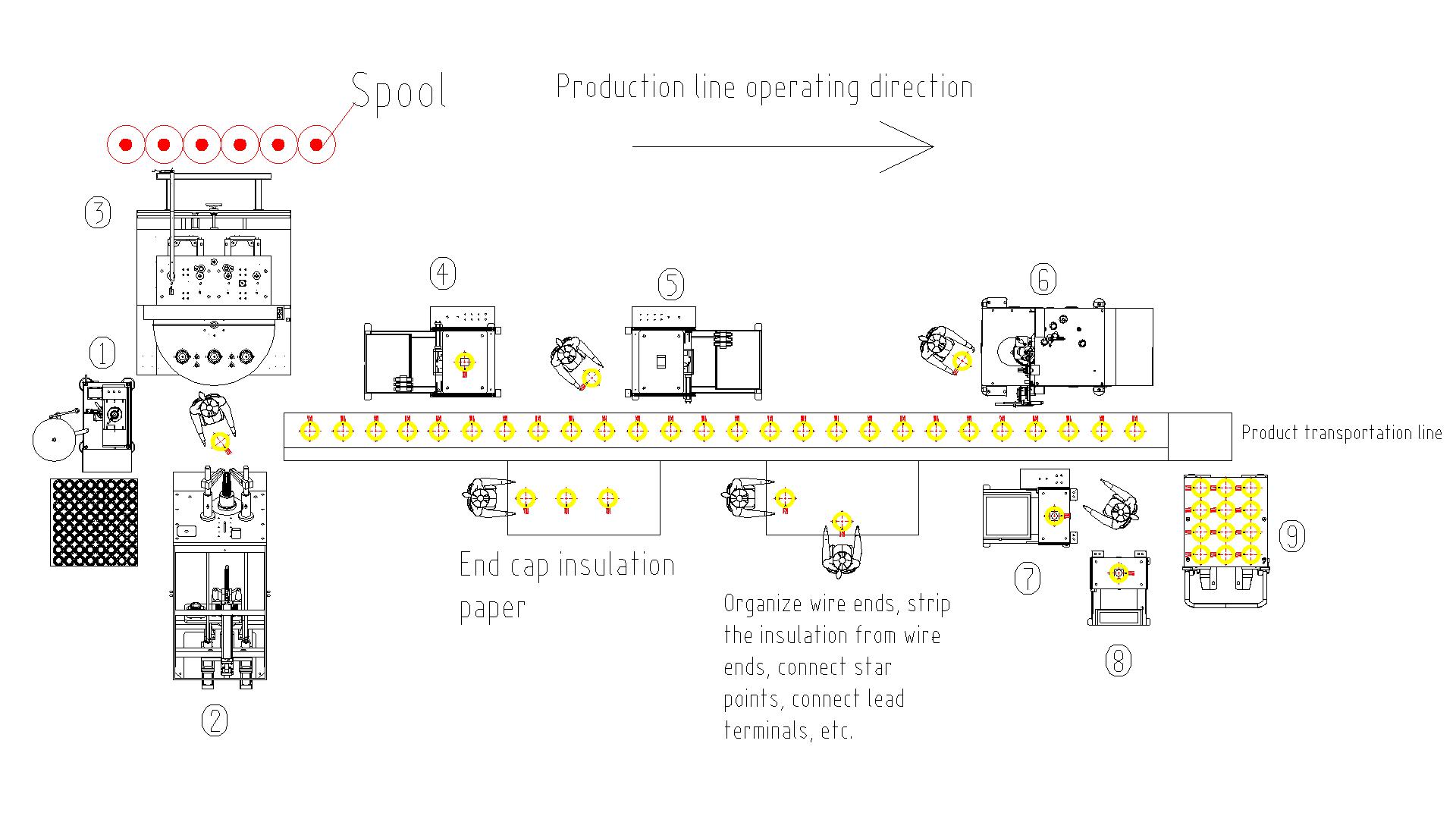

Three-Phase Industrial Motor Stator Winding Production Line
① Insulation Paper Inserting Machine
② Main Line Coil Insertion Machine
③ Coil Winding Machine(3-head / 6-station)
④ Pre-Forming Machine
⑤Middle Forming Machine
⑥ Coil Lacing Machine
⑦ Final Forming Machine
⑧ Stator Comprehensive Testing Instrument
⑨Finished product material trolley
Features
- Workstation footprint：10m（L）× 6m（W）
- Single-time winding insertion, cycle time ≈ 1–1.3 min/unit
- Manual loading & unloading · Automatic operation · Transfer trolley forcontinuous running
- Automatic insertion of slot insulation paper with automatic edge folding
- Automatic winding followed by coil insertion
